SunSDR2 DX 100W HF, 6m & 2m Transceiver
SunSDR2 DX is a direct sampling 100 watt SDR transceiver developed for the serious DX:er and contest operator. It covers all HF bands plus 50 MHz and 144 MHz VHF bands with a general coverage receiver. It combines high performance and 100 watt transmit power in a small package with a LAN interface for maximum flexibility. Remote control over DSL or mobile 3G or 4G connections provide a full SDR experience using the Expert Remote System.
SKU: SS2DX
SunSDR2 DX 100W HF, 6m & 2m Transceiver
Back in stock late January
SunSDR2 DX is a direct sampling 100 watt SDR transceiver developed for the serious DX:er and contest operator. It covers all HF bands plus 50 MHz and 144 MHz VHF bands with a general coverage receiver. It combines high performance and 100 watt transmit power in a small package with a LAN interface for maximum flexibility. Remote control over DSL or mobile 3G or 4G connections provide a full SDR experience using the Expert Remote System.
2,976.37 $
Back in stock late January

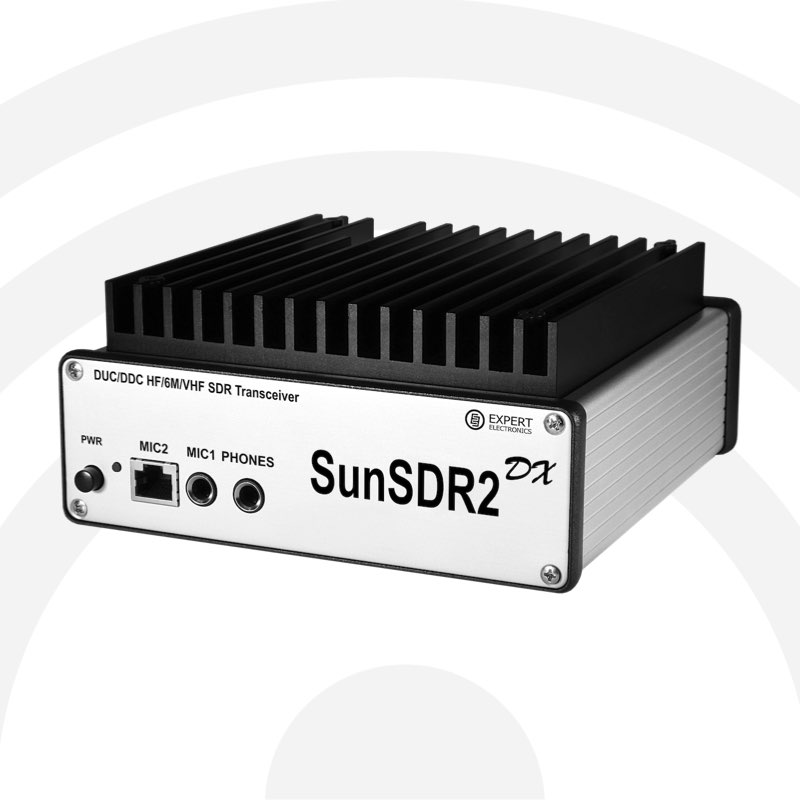

SunSDR2 DX is the most popular transceiver from Expert Electronics. It is a high performance 100W-HF; 80W-6M; 8W-2M transceiver, very compact, and active cooling making it perfectly suited for DXpeditions and contest operators.
The latest hardware update, SunSDR2 Gen5!*
- Redesigned heatsink, with thinner and more frequent gills for higher effectiveness
- Improved temperature sensor placement for more accurate temperature readings
- Improved TX IMD3 up to ~37 dB across all HF bands, with 100W output power
- 6M output power have been increased up to 80W
- Improved SDR PCB protection from cross-talks. Improved protection for the supply chain
- Added ferrite bead on the flex-cable connecting PA and SDR PCBs, for more stable operation with external ATU
- Added filtering of the headphones’ connector
- Slight improvement of the RX path
- TX filter of the DAC chip, which provides better linearity of the TX signal
- Band pass filter on the PA input, which improves linearity of PA operation
- Improved structure of 160, 6M TX filters
- RX/TX switching node on PCB is more resilient now
* Improvements in comparison to Generation 1 (November 2019)
SunSDR2 DX Features
- 100 watt transmit power on HF, 80 watt on 50 MHz!
- TU connector for AAT-100 automatic antenna tuner option
- Powerful fan for demanding use
- HPF for VHF (100 MHz) to eliminate strong out-of-band stations coming from HF
- LPF for HF (70 MHz) to eliminate strong out-of-band stations coming from VHF
- VHF LNA (PGA103+ chip)
- High-performance built-in stereo audio codec 24 bit with 114 dB dynamic range
- Anderson Powerpole power connector
- Ground lug
- Sturdy DIP-type ExtCtrl connector
- Low power consumption and great power dissipation
SunSDR2 DX Main Capabilities
- Independent RX path based on DDC (Direct Down-Conversion) architecture
- Independent TX path based on DUC (Direct Up-Conversion) architecture
- Output power: 100W on HF, 50W on 6M and 8W on 2M
- 2 software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz
- Remote control operation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
- TCI interface for seamless connection with third-party software like SDC (with its own Skimmer), LogHX, SWISSLOG and RUMlog, more are coming
- Professional TX processing module provides the most advanced tuning capability for voice operation
- ExtCTRL connector to control external devices with 8 powerful keys with open collector
- ALC connector for external power amplifiers*
- Transverter support
- An opportunity to use the transceiver as a signal generator via DAC OUT connector (SMA connector)
- An opportunity to use external filters in the middle of the RF path, using ADC IN and RX OUT (SMA connector)
- Minimal delay in CW mode (about 10 ms)
- 10 MHz externa reference oscillator input
- Full duplex or half duplex modes**

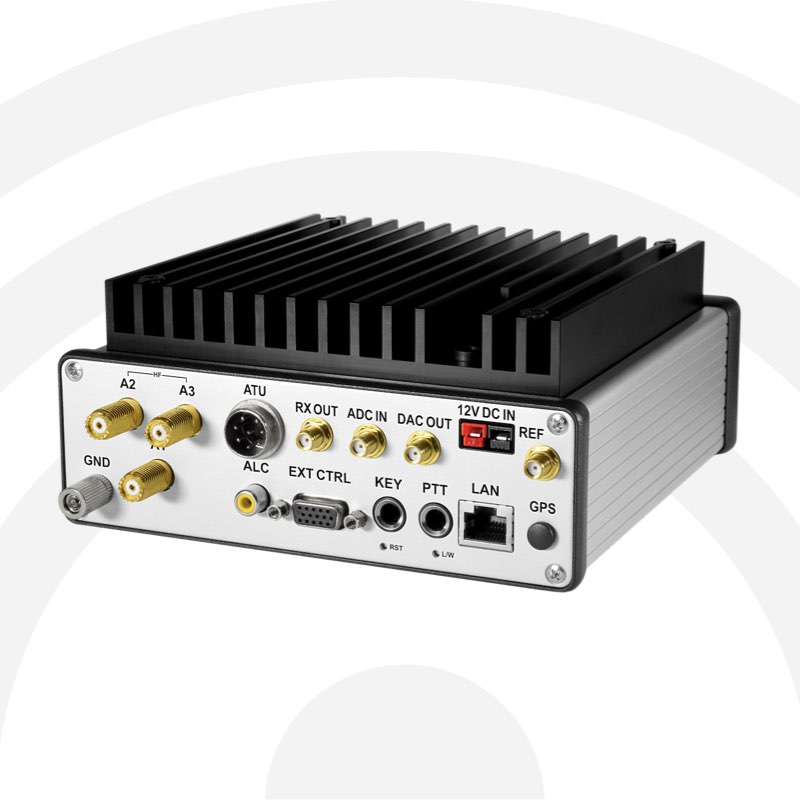

- Antenna switch with 2 HF antenna connectors and separate VHF antenna connector (Mini UHF connectors)
- Internal power-meter for HF and VHF bands and SWR-meter for HF band
- Ethernet LAN interface provides a fast and reliable connection to PC
* ** Feature supported by the transceiver’s hardware and will be supported in a future release of ExpertSDR3 software.
SunSDR2 DX Architecture
ExpertSDR3 – a Whole New User Experience!
The new version of ExpertSDR3 make the SunSDR2 DX a whole new beast. This popular application has been rewritten from the ground up and version 3 sports a much cleaner and more versatile GUI, Graphic User Interface. It’s cloud service lets you log in without setting up port forwarding and firewall rules, it just works! ExpertSDR3 connects directly to any EE device locally or via remote (via internet) for a seamless user experience. Paired with the new E-Coder 2 the you will enjoy latency-free SSB and CW monitor listening.
ExpertSDR3 System Requirements
- ОS Windows 10 x64 or later versions, Linux Ubuntu 22.04 x64 and the latest patches of versions 11 (BigSur)/ 12 (Monterey)/ 13 (Ventura) of macOS (Intel and Silicon)
- 4 core CPU Intel Core i3 or Core i5
- 8 GB RAM
- Video card with support of DirectX11 or higher
SunSDR2 DX Specifications
RF ADC, bit @ MHz | 16 @ 160 |
ADC type | LTC2209 |
RX Frequency range, MHz | 0.1…65; 95…155 |
Independent software receivers | 2 + 2 SubRX |
Sample rate, kHz @ bit | 39; 78; 156; 312 @ 24 |
Bandscope, MHz | 80 |
RX HF filters, MHz | LPF: 65 or 9 x BPF + constant LPF: 70 |
RX VHF filters, MHz | WideRX: 95-155 or SAW filter for 2M: 144-148 + constant HPF: 100 |
BDR on HF, dB | 130 |
BDR on VHF, dB | 129 |
Sensitivity, uV | 0.2 |
ATT/Preamp, dB | -20; -10; 0; +10 |
VHF LNA, dB | 27 |
Band Pass Filters | 9 x HF octave band pass filters: 160M: 0-2.5 MHz (Chebyshev I – 7 Order) 80M: 2.5-4 MHz (Chebyshev I – 3 Order) 60M: 4-6 MHz (Chebyshev I – 3 Order) 40M: 6-7.3 MHz (Chebyshev I – 3 Order) 30M: 7.3-12 MHz (Chebyshev I – 3 Order) 20M: 12-14.5 MHz (Chebyshev I – 3 Order) 17-15M: 14.5-21.5 MHz (Chebyshev I – 3 Order) 12-10M: 21.5-30 MHz (Chebyshev I – 3 Order) 6M: 30-65 MHz (Chebyshev I – 3 Order) Wide filters for entire Nyquist zones 0-65 MHz and 95-155 MHz |
RF DAC, bit @ MHz | 14 @ 640 |
TX Frequency range, M | All amateur bands 160m to 6m and 2m |
Output power on HF, W | 100 |
Output power on 6M, W | Up to 80 |
Output power on VHF, W | 7 (up to 8) |
TX IMD3 HF / VHF, dB | 37 / 30 |
TX Filters | 8 x LPF: 160M: (Eleptic – 5 order) 80M: (Eleptic – 5 order) 60-40M: (Eleptic – 5 order) 30-20M: (Eleptic – 5 order) 17-15M: (Eleptic – 5 order) 12-10M: (Eleptic – 5 order) 6M: (Eleptic – 5 order) 2M: (Eleptic – 5 order) |
Local oscillator TCXO, MHz +/- ppm | 20 +/- 0.5 |
External 10 MHz oscillator input | + |
Built-in audio codec, bit | 24 |
RF input/output | 2HF, 1VHF (Mini_UHF) ADC IN, DAC OUT (SMA) |
PC interface | LAN 100 Mbit |
DC voltage range in RX/TX, V | 8 – 14.8 / 10 – 14.8 |
Recommended DC voltage, V | 13.8 |
Current consumption RX/TX, A | 1.2 / 24 |
Power consumption RX/TX, W | 16.5 / 330 |
Operating temperature, °C/°F | 0 to +50 / +32 to +122 |
Dimensions L x W x H, cm/inches | 19.0 x 17.0 x 8.0/ 7.48 x 6.69 x 3.14 |
Weight, kg/lbs | 1.8/ 3.96 |
Specifications are subject to change without notice or obligation and specifications are only guaranteed within the amateur radio bands.
Whats in the Box
- SunSDR2 DX Transceiver with cooling fan
- LAN-cable 1.8m for connecting to local network
- Power cable 2.0m for connecting to power supply
- Two 6.3mm phono male to 3.5mm phono female adapters to connect a headset to the radio
- Mini UHF (male) to SO239 (UHF/PL female) pigtail adapter with 30 cm RG58 coax.
SunSDR2 DX Recommended Accessories
- E-Coder 2 control panel with sound card for local monitor of remote radio
- ModMic boom microphone
- UHF to Mini-UHF adapter
- UHF to Mini-UHF pigtail adapter
- UHF to BNC adapter
- PTT control cable for external power amplifier
- PTT & Band Data cable for SPE Expert amplifiers
- Anderson Powerpole Power plug kit
SunSDR2 DX is made to the highest quality standards in Taiwan (TW)!
