Xiegu X6200 HF/50MHz Portable SDR Transceiver

Availability:

In stock July


The NEW Xiegu X6200 is a self-contained 8 watt HF/6m direct sampling SDR transceiver with a large color displayautomatic antenna tuner and a detachable high capacity battery.

Delivery is now estimated to July. Sign up for our newsletter (below or to the right) to stay informed.

Due to CE certification timing, we will wait for the second production batch.  We have adjusted our delivery to July. You will get a 2nd batch unit and your purchase is covered by EU consumer legislation with a 2-year warranty .

1,011.12 $

  • EUR: 929.00 €
  • SEK: 10 517 kr

In stock July

unlimited available through backorder

The new Xiegu X6200 is an ultra-portable direct sampling SDR transceiver for HF and 6m with additional receive capability in the VHF Air band and wide FM receive in the FM broadcast band.

Xiegu X6200 Key Features

  • HF/50MHz all-mode
  • 8 W transmit power with external power source, 5 W with internal battery
  • 4″ high-resolution color screen, 800*480 pixels resolution
  • Detachable battery pack
  • Built-in efficient automatic antenna tuner
  • Integrated SWR scanner
  • Voice memory keyer
  • CW memory keyer
  • Integrated USB line control/transmission, built-in sound card
  • Remote control support
  • Wireless FT8 operation
  • WFM broadcast RX
  • Aviation band RX

Xiegu X6200 General Specifications

  • Frequency coverage: 0,5-30+50-54MHz (Transmit in Ham Bands)
  • Operating modes: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY (F1B), AM (A3E)
  • Minimum Frequency Step: 1 Hz
  • External power supply voltage: DC9-15V
  • Frequency stability: ±1ppm within 20 minutes after startup
  • Antenna Impedance: 50 Ohm

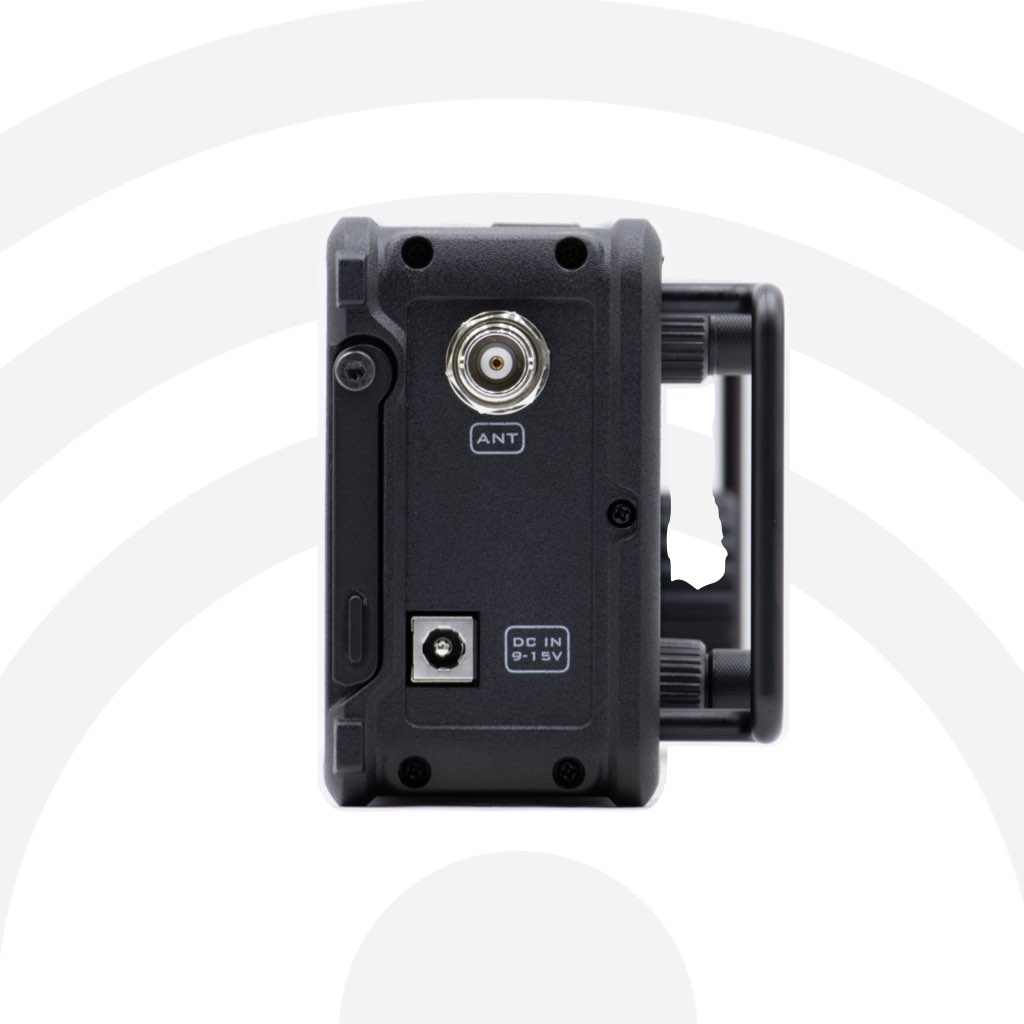

  • Antenna connector type: BNC
  • Operating temperature range: 0C to +50C
  • Current consumption RX: <65o mA, TX: 3,5A

Xiegu X6200 Receiver Specifications

  • Frequency coverage:
    • 0,5-30+50-54MHz
    • 88~108MHz (FM broadcast)
    • 108~136MHz (aviation band)
  • Receive sensitivity (10dBS/N)
    • (PRE=on, ATT=off, NB=off,NR=off, SSB/CW/AM = 10dB S/N, FM = 12dB SINAD)
    • 0,55-1,79 MHz AM: 10 uV
    • 1,8-30 MHz SSB/CW 0.20 uV, AM 2uV
    • 50-54 MHz FM 0.2 uV AM 2uV
    • 88-108 Wide FM 5uV
  • Audio output: 0,45 (4 Ohm ≥10% THD)
  • MDS: -138 dBm

Xiegu X6200 Transmitter Specifications

  • Frequency range
    • 1.8~2.0 MHz
    • 3.5~3.9 MHz
    • 5.3515~5.3665 MHz
    • 7.0~7.2 MHz
    • 10.1~10.15 MHz
    • 14.0~14.35 MHz
    • 18.068~18.168 MHz
    • 21.0~21.45 MHz
    • 24.89~24.99 MHz
    • 28.0~29.7 MHz
    • 50~54 MHz
  • Output Power, external power: 8W +/- 1dB
  • Output Power, internal battery: 5W +/- 1dB
  • Spurious suppression: 1.8~29.6MHz: ≥50dB
    • 50-54 MHz ≥60 dB
  • Carrier suppression: ≥50dB
  • SSB Frequency Response: 300-2700Hz (-6dB)
  • FM Modulation Swing; +/- 5kHz
  • Mic Impedance: o,2-10k
  • Antenna tuner tuning impedance range: 20-175 Ohm
  • Antenna tuner initial tuning time: ≥ 10s
  • Antenna tuner memory recall time ≥ 0.1s

Xiegu X6200 Wireless network/Bluetooth

  • Wireless LAN standard: IEEE802.11b/g/n
  • Authentication and encryption: WEP (64/128bit)
  • WPA-PSK(TKIP)
  • WPA2-PSK(AES)
  • Frequency band: 2.4G
  • Bluetooth version: 4.0

Xiegu X6200 General Specifications

  • Dimensions: 200 x 89 x 51 mm
  • Weight: 880 g (radio unit only)

Xiegu X6200 In the Box

  • X6200 radio unit complete with antenna tuner and rechargeable battery

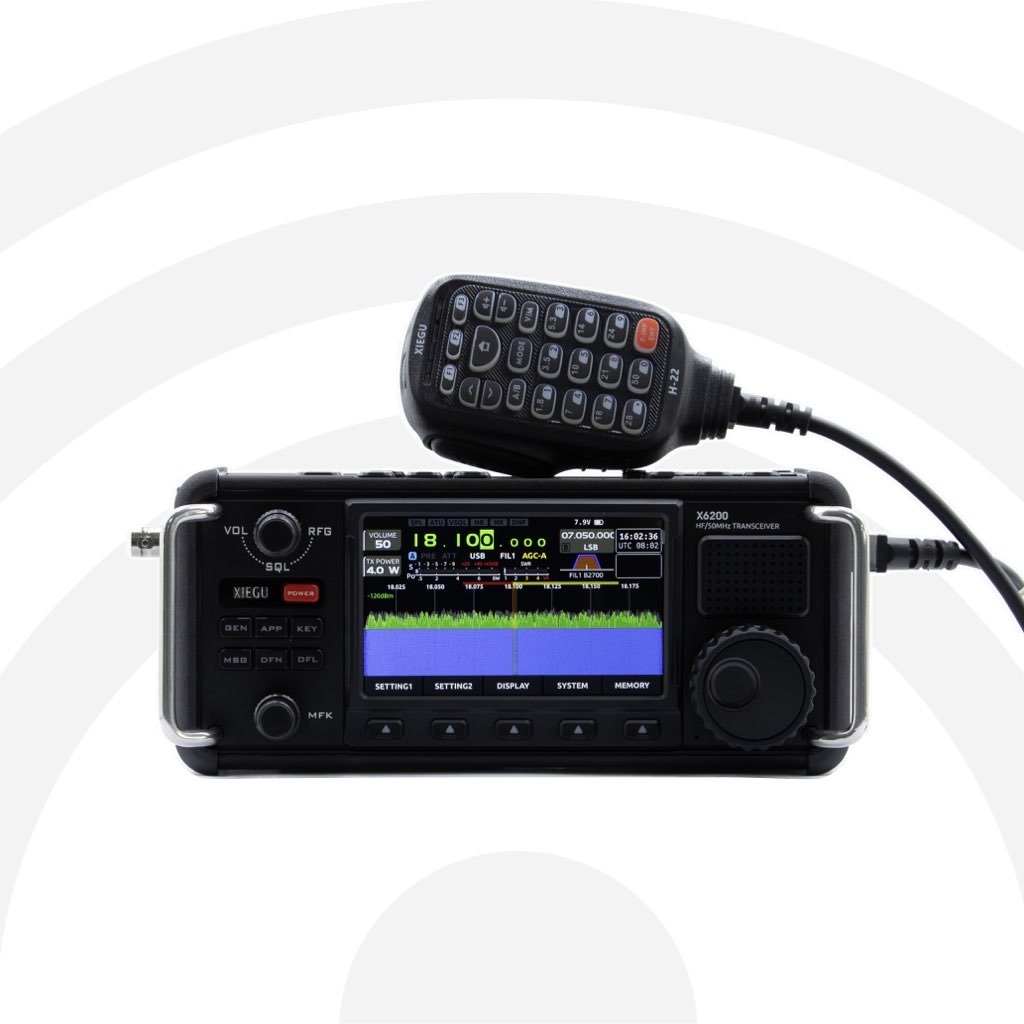

  • Microphone with backlit remote control keypad
  • Serial cable for PC connection
  • 12 Volt DC power cord
  • English manual
  • Xiegu Service Card

Xiegu X6200 Suggested Accessories

Xiegu X6200 Preliminary Brochure

Please note that information on this product page is preliminary and subject to change when the product becomes available.
