MC-750 100W Portable GP Antenna

Availability:

In stock (can be backordered)


JNCRadio MC-750 portable antenna for 40 to 6 meter bands capable of 100 watts SSB. Complete with antenna radiator, 40 meter coil, ground spike and carrying bag. Add a tripod for simple deployment in rocky terrain.

237.16 $

  • EUR: 219.00 €
  • SEK: 2 547 kr

In stock (can be backordered)

unlimited available through backorder

Save 20% when ordered together!

Tripod for MC-750 and JPC-12

JNCRadio Tripod with M10 Adapter is the perfect solution for supporting your MC-750 or JPC-12 antenna. The tripod is compact and easy to set up and fold down, making it the ideal choice for your next POTA/SOTA.

JNCRadio MC-750 is a portable antenna kit supporting 40 to 6 meter bands and with power handling capacity of maximum power 100 watts PEP. With a 65x9x7cm carry bag(1.8kg) it can be easily packed and travel around.

MC-750 operates as 1/4 wavelength full size antennas on 14MHz-50MHz. For 7MHz operation, the supplied 7MHz coil is needed. MC-750 antenna base reserved counterpoise holes for radials. You just need to plug in the supplied counterpoise wires to these holes.

Tuning the MC-750 is fast and simple! The telescopic whip has reference marking points printed printed for the most popular ham bands. Adjust to meet your desired frequency and fine tune the whip’s length for minimum SWR indicated by your radio or a portable antenna analyser.

MC-750 Features

  • Light weight, small size, easy to carry
  • Easily tunes to any band/frequency in the 7 to 54 MHz frequency range
  • Quickly deploys in three (3) minutes or less
  • Perfect for outdoor adventures, travels or balcony installations

MC-750 User Manual with instructions for deployment.

MC-750 Specifications

Frequency Range

7 to 50 MHz

Power Handling

100 watt SSB/PEP

Impedance

50 Ohm

Connector

UHF/PL-259
Dimension 65 x 9 x 7 (bag size)
Wight Approximate 5.7 meter (excl ground spike)
Weight 1.8 kg

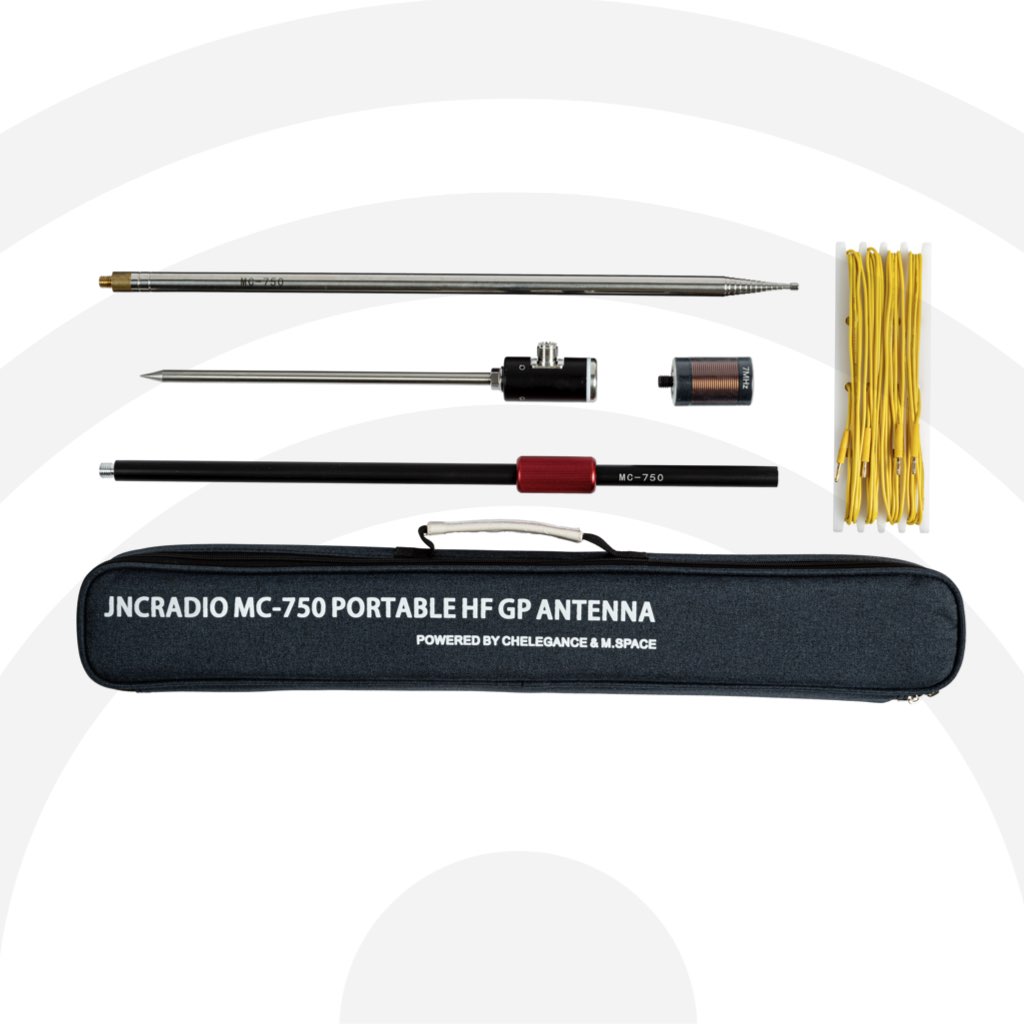

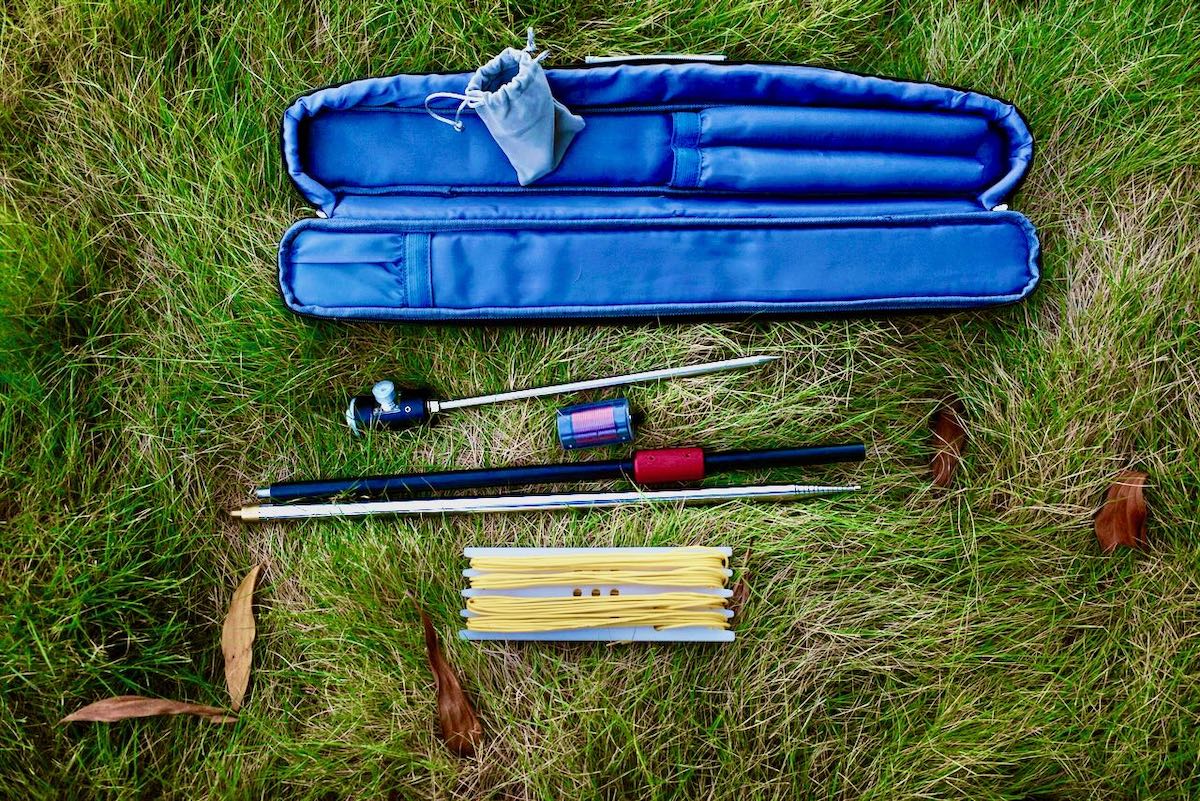

MC-750 In the Box

  • 1 x ground spike
  • 1 x antenna base (attached to spike)
  • 1 x 7 MHz coil
  • 1 x 50 cm ant arm
  • 1 x 5.2 meter radiator whip
  • 4 x 3.5 meter radials (counterpoise wires)
  • 1 x winder for radials
  • 1 x carrying bag

MC-750 Recommended Accessories

  • Tripod
SKU: MC-750 Categories: , , Tag:
Weight 2 kg
Dimensions 66.5 × 12.2 × 8.2 cm
