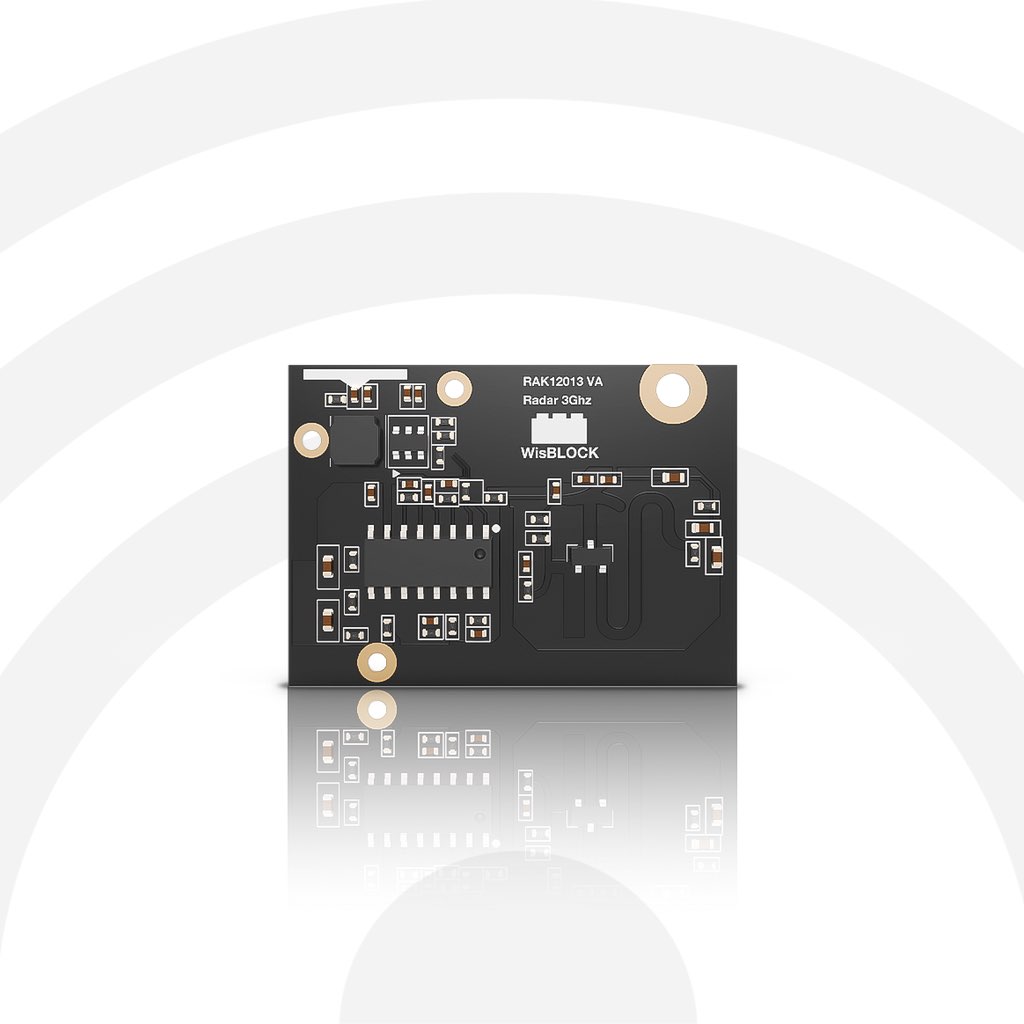

RAK12013 Radar Sensor

Product Description

RAK12013 Radar module is a motion detection sensor based on RCWL-9196. This motion detection sensor can detect humans and pets in the sensing range of 5-7m. It can be used as security system to detect intruders or for light automation.

Use it to build a motion sensor for a security system, for lighting automation and for your Smart Home and Smart Office projects.

Features

• Motion detection module
• Detection Distance: 5-7m
• Trigger Way: repeat trigger
• 3.3V Power supply
• Size: 25mm x 35mm

Documentation

• RAK12013 Quick Start Guide
• Datasheet
• WisBlock Quick Start Guide
• WisBlock Source Code Repository(opens new window)
• RAK12013 3D Model(opens new window)
• 40-Pin Male Connector 3D file(opens new window)
• WisBlock IO Tutorial

Tutorials

• WisBlock Starter Kit and RAK Edge Gateway Complete LoRaWAN Guide
• Installation of Board Support Package in Arduino IDE
• The Icing on the Cake: A Template to Innovate Custom IoT Applications with RAKwireless and Datacake
