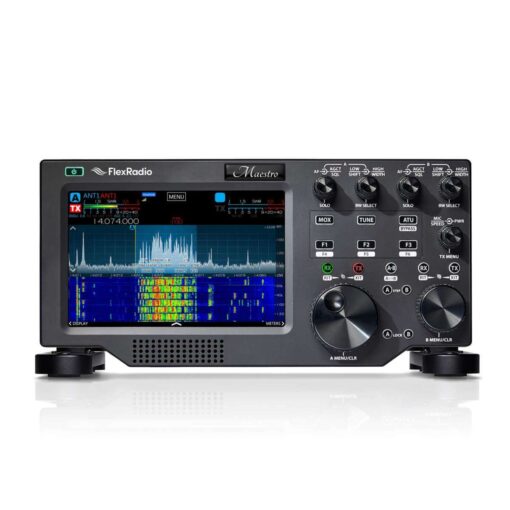

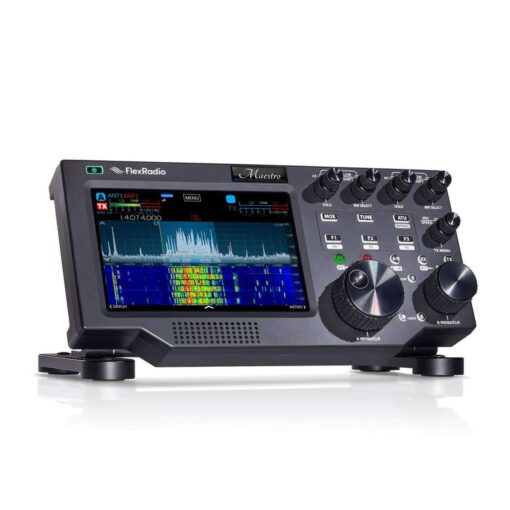

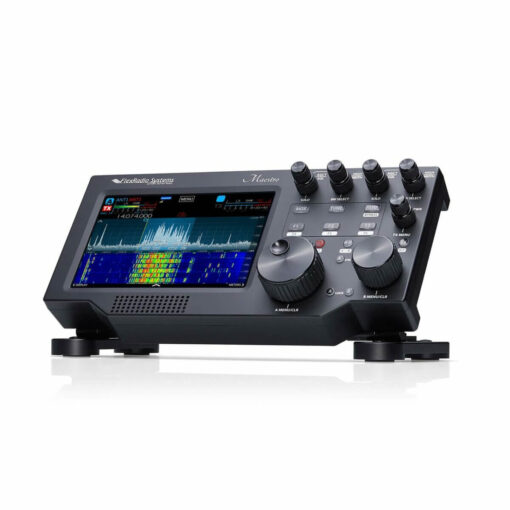

Maestro Control Console for FLEX-6xxx

Connect Maestro directly or through your local area network (LAN) to any Flex 6000 series transceiver and you are ready to operate.

Maestro places the most frequently used controls directly at your fingertips. Controls are labeled for intuitive operation and designed to minimize hand motion for the most common radio operations. Occasionally used controls are easily accessible on the large touch screen display bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune, and menu operation. CW Paddles can also be plugged into the Maestro to work directly with your FLEX-6000 series radio.

If you’ve ever longed for the moment when you could monitor the bands or work DX from a lounge chair by the pool or from the comfort of your leather recliner — the time is now. Maestro’s small footprint and minimal wiring clean up your operating position and let you mount the radio virtually anywhere in the shack or around the house, Its sleek, lightweight design makes it not only the envy of your peers but also easy to carry or pack.

Flex Maestro Features

Radio in High Resolution

Never miss a QSO

• 8” High Definition (WXGA 1280 x 800)
• Multi-touch display
• High-Resolution Panadapter and Waterfall
• Up to two 7MHz spectrum displays
• Optimized workflow
• Large, Easy-to-read Text

Confusion Free Controls

Only the controls you need, only when you need them.

• Ergonomically spaced / single-function controls
• Intuitive Touch Screen Menus
• Illuminated Buttons
• Two full VFOs

Battery Packs Specifications*

FlexRadio Systems recommend that you follow the recommended manufacturer’s instructions for charging the battery pack. Not all battery packs can be charged while the load or the USB drain cable is connected. For ensured safety, disconnected the load or the USB drain cable when charging the battery unless explicitly allowed by the battery manufacturer. FlexRadio will not be responsible for any damage to the Maestro due to battery charging related issues.

The batteries below meet the following specs:

• Maximum Battery Size: 3″W (7.62 cm) x 6″L (15.24 cm) x 0.75″D (1.91 cm)
• Power Connector: USB-A female
• Recommended Current Supply: 2.5A at 5V DC output
• Auto Start: Preferred feature — initiate start on the introduction of a load

*Not sold by FlexRadio

Radio Anytime, Anywhere

With SmartLink remote, just turn it on and play radio from anywhere.

• Plug and Play Remote
• Built-in Wi-fi and Ethernet
• Truly Wireless Operation
• No complex setup required
• Operate anywhere, any time
• Across the country or across the world

Flex Maestro Specifications

Display/Touch Screen

• Up to 2 simultaneous, real-time spectrum displays and waterfalls
• Dual VFO Readouts
• Display Type: Large 8.0″ In Plane Switching (IPS) display with touch screen
• Display Resolution: HD (WXGA 1280 x 800) display resolution

 Input/Output

• Microphone 1: Pseudo-balanced 8-pin RJ-45, dynamic or electret compatible
• Microphone 2: Pseudo-balanced 1/8″ (3.5mm) TRS
• Headphones: Stereo headphone jack, 1/8″ (3.5mm) TRS
• Headphones Impedance: 16 Ohm at 25 mW, 32 Ohms at 13 mW with THD+N: 0.02%
• Speaker: Internal 2W mono speaker
• Powered Speaker Output: Stereo consumer line level or powered speaker output, 1/8″ (3.5mm) TRS
• Line Output: Stereo consumer line level or powered speaker output, 1/8″ (3.5mm) TRS
• Line Out/Powered Speaker Output Impedance: 600 Ohm, stereo unbalanced
• Line Input: Pseudo-balanced line-in jack, 1/8″ (3.5mm) TRS
• Key/Paddle Input: 1/8″ (3.5mm) TRS
• PTT Input: 1/8″ (3.5mm) TS
• DC Power Connector: Coaxial DC power connector, 2.1mm (cable included)

Communications Interfaces

• Wi-Fi: Dual band 2×2 802.11a/b/g/n
• Ethernet: 100/1000 Mbps

 Mechanical

• Without Feet:
  Height: 6.75″ (17.1cm)
  Width: 14″ (35.6cm)
  Depth: 1.75″ (4.5cm)
• Weight: Approximately 4 lbs. (1.8 kgs)

 Electrical

• Power: 10-15 VDC
• Standard wall-mount AC adapter
• Battery: Optional Lithium-ion battery

Flex Maestro Options

• Tilt hinge feet (constant torque)
• FlexRadio FHM-3 hand mic
• Soft-side carry case
• Plastic dust cover

Flex Maestro Documents

• Quick Start Guide
• User Guide
• Full Specifications
