QRP Kings Compared: IC-705, TX-500, X6200 and FTX-1 Field

The QRP Kings of portable amateur radio have never been more capable. From the feature-rich Icom IC-705 and rugged Lab599 TX-500 to the value-packed Xiegu X6200 and the new Yaesu FTX-1 Field, today’s portable SDR transceivers offer something for every operator. This comparison examines their features, battery life, current consumption, portability, operating modes and real-world suitability for POTA, SOTA, EMCOMM and travel.

	Icom IC-705	Lab599 TX-500	Xiegu X6200	Yaesu FTX-1 Field
Model
Frequency Coverage HF/50 MHz	1.8–54 MHz TX; 0.03–60 MHz RX	1.8–56 MHz TX/RX	1.8–54 MHz TX; 0.5–30 MHz + 50–54 MHz RX	1.8–54 MHz TX; 0.03–76 MHz RX
Frequency Coverage VHF/UHF	144/430 MHz TX; 60–199.999 MHz & 400–470 MHz RX	No	88–108 MHz WFM RX; 108–136 MHz AM RX Optional WR12 wideband receiver (108–999 MHz)	144/430 MHz TX; 76–174 MHz & 400–470 MHz RX
VHF/UHF Transmit	Yes	No	No	Yes
Modes	SSB, CW, AM, FM, DIGI, D-STAR	SSB, CW, AM, FM, DIGI	SSB, CW, AM, FM, DIGI	SSB, CW, AM, FM, DIGI, C4FM
Output Power (battery/external)	5 W / 10 W	— / 10 W	5 W / 8 W	6 W / 10 W
100 W Expansion	No	No	No	FTX-1 Optima
Antenna Tuner	Optional	No	Built-in	Optional
Spectrum Scope / Panadapter	Yes	Yes	Yes	Yes
USB Audio Interface	Yes	Optional	Yes	Yes
Built-in Speaker	Yes	Speaker Microphone	Yes	Yes
Bluetooth / WLAN	Yes / Yes	No / No	Yes / Yes	Optional / No
GPS	Yes	No	No	Optional
Battery Capacity	1880 mAh	Optional BP-550, 6×18650 cells	3200 mAh	6400 mAh
Estimated RX Time	~9 h	~60 h	~10 h	~11 h
RX Current	~200 mA	~100 mA	~320 mA	~600 mA
TX Current (battery/external)	~2.5 A / ~3.0 A	— / ~3.0 A	~2.7 A / ~3.0–3.5 A	~2.5 A / ~3.0 A
Operating Temperature	–10 °C to +60 °C	–20 °C to +55 °C	–10 °C to +60 °C	–10 °C to +50 °C
Weather Resistance	No	Yes	No	No
Enclosure	Plastic	Milled aluminium	Metal frame with plastic panels	Metal chassis with plastic panels
Dimensions (W×H×D)	20.0×8.35×8.2 cm	20.7×9.0×2.1 cm	20.0×8.9×5.1 cm	21.3×8.9×5.5 cm
Weight	1.10 kg	0.55 kg	0.88 kg	1.25 kg
eHam Rating	4.6/5 (45)	4.7/5 (19)	3.8/5 (11)	3.4/5 (11)
Price	1 490.00 € More info ➜	1 349.00 € More info ➜	799.00 € 929.00 € More info ➜	1 449.00 € More info ➜

Which portable radio should you choose?

Icom IC-705: Best for operators who want the most complete all-in-one portable station. It suits POTA, casual SOTA, travel, digital modes, D-STAR, VHF/UHF work and operators who value a polished interface, wide coverage and strong wireless integration. The IC-705 projects innovation and versatility, appealing to those who enjoy exploring every corner of the hobby—from HF DXing and FT8 to satellites and local VHF/UHF operation. It makes a statement that you value technology, flexibility and having one radio capable of almost everything.

Lab599 TX-500: Best for hikers, SOTA activators and field operators who prioritise low receive current, compact size and a rugged aluminium enclosure. It is a strong choice for lightweight HF/6 m portable work, especially where durability and battery life matter more than built-in extras. Its milled aluminium enclosure and minimalist design feel closer to professional field equipment than a traditional amateur radio. The TX-500 appeals to operators who see radio as an outdoor activity and value simplicity, efficiency and reliability above all else.

Xiegu X6200: Best for value-focused portable operators who want an internal tuner, built-in battery, USB audio and a modern SDR-style feature set at a lower price. It suits POTA and casual field use, especially for operators comfortable with firmware-driven radios and occasional quirks. The X6200 appeals to practical experimenters who enjoy discovering new features and getting maximum capability for their investment. It often attracts operators who are more interested in operating opportunities than brand prestige.

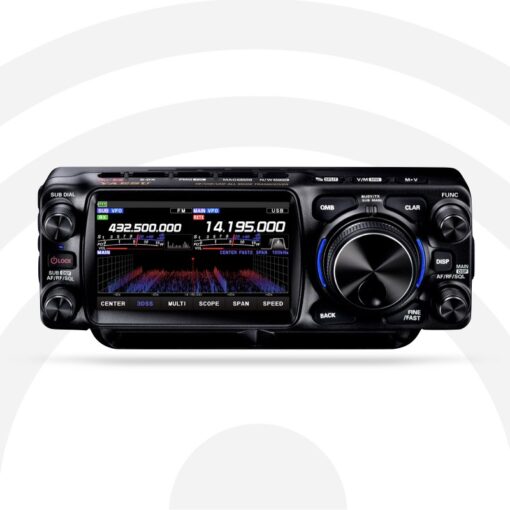

Yaesu FTX-1 Field: Best for operators who want a modern HF/VHF/UHF field radio in a compact standalone package. It suits portable, EMCOMM and hybrid field/base users who want 6 W battery operation and 10 W external operation, while those needing 100 W should choose the FTX-1 Optima version, which includes the SPA-1 amplifier. The FTX-1 Field combines modern SDR technology with Yaesu’s strong contesting and DX pedigree, giving it a more performance-oriented character than many portable radios. It appeals to operators who value preparedness, versatility and technical capability, while still wanting a radio that can transition from a backpack or deployment kit to a serious operating position. The design and branding carry a subtle message that performance matters just as much as portability.

Ultimately, the best choice depends as much on operating style as specifications. The IC-705 appeals to the technology enthusiast, the TX-500 to the adventurer, the X6200 to the practical experimenter, and the FTX-1 Field to the operator seeking a balance between portability, preparedness and long-term flexibility.

Ready to take your station beyond the shack? Whether you’re activating a remote summit, hunting parks, preparing for emergency communications or simply enjoying the freedom of operating from anywhere, there’s never been a better time to discover portable amateur radio. Choose the radio that matches your operating style, pack your antenna and battery, and experience the adventure that begins when you leave the desk behind.
