Chameleon MPAS LITE

(1 customer review)
Availability:

In stock (can be backordered)


The CHA MPAS LITE is the little brother of the CHA MPAS 2.0Ā – the most popular Modular Portable Antenna System in the WORLD!

493.54 $526.52 $

  • EUR: 449.00 € - 479.00 €
  • SEK: 5 127 kr - 5 469 kr

The telescopic Whip Length can be optimized for no-tuner operation on 20-6M when using a 7.6 meter (25 foot) Counterpoise Wire.

Average SWR 1.5:1

20-17m ā€“ Whip Length 5.2 meter (17 ft), all sections fully extended)

15-10m ā€“ Whip Length 3.66 metet (12 ft), top three sections down/not extended)

The Modular Portable Antenna System (MPAS) is a concept allowing the radio operator to configure and deploy the antenna system in a variety of configurations. Some of the possible deployment configurations:

  • Vertical
  • Horizontal
  • Sloper
  • Inverted ā€œVā€
  • Inverted ā€œLā€
  • NVIS
  • Balcony (See our blog for article)
  • Vehicle (Stationary)
  • Man-Pack

Chameleon MPAS LITE Specifications

  • Frequency: 6M – 160M
  • Power:
    • HYBRID-MICRO 100 W SSB / 50W CW / 25 W high duty cycle digital modes
    • HYBRID-MINI 500 W SSB / 250 W CW / 40 W high duty cycle digital modes
  • Mounting Configuration: 3/8-24 Thread

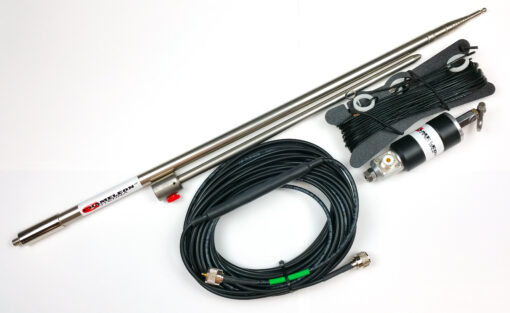

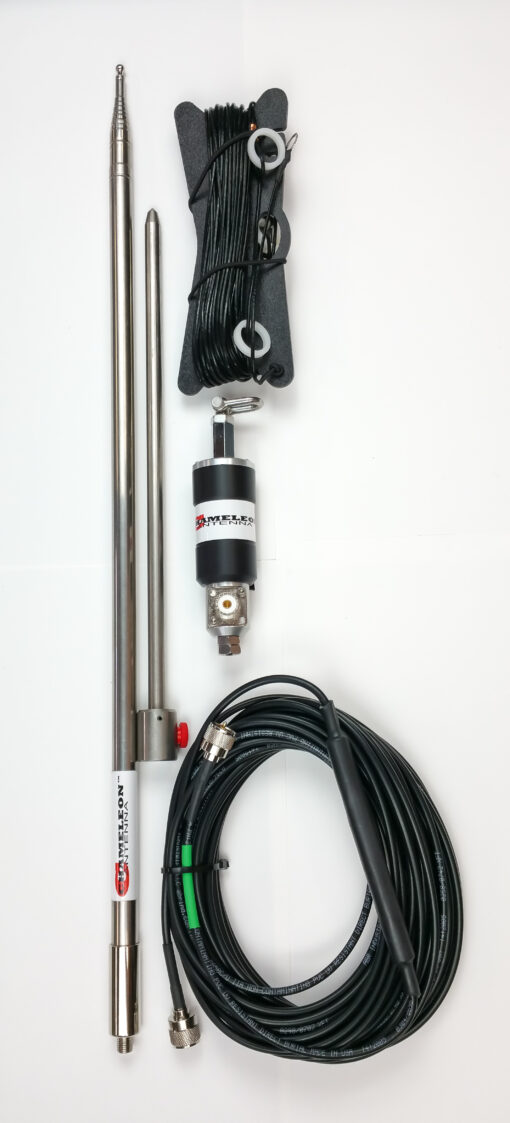

Chameleon MPAS LITE Antenna System Consists of;

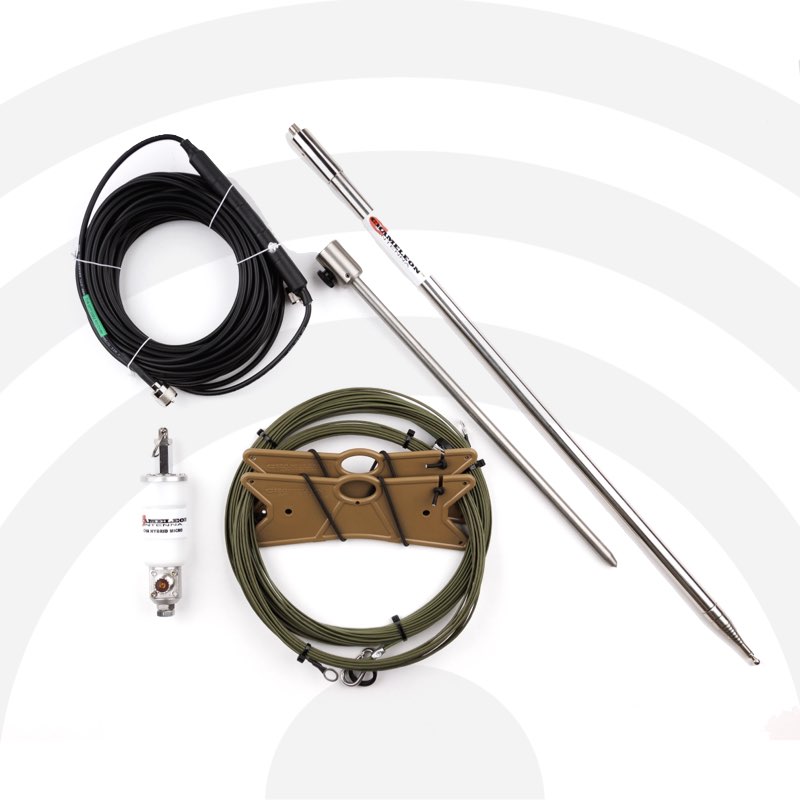

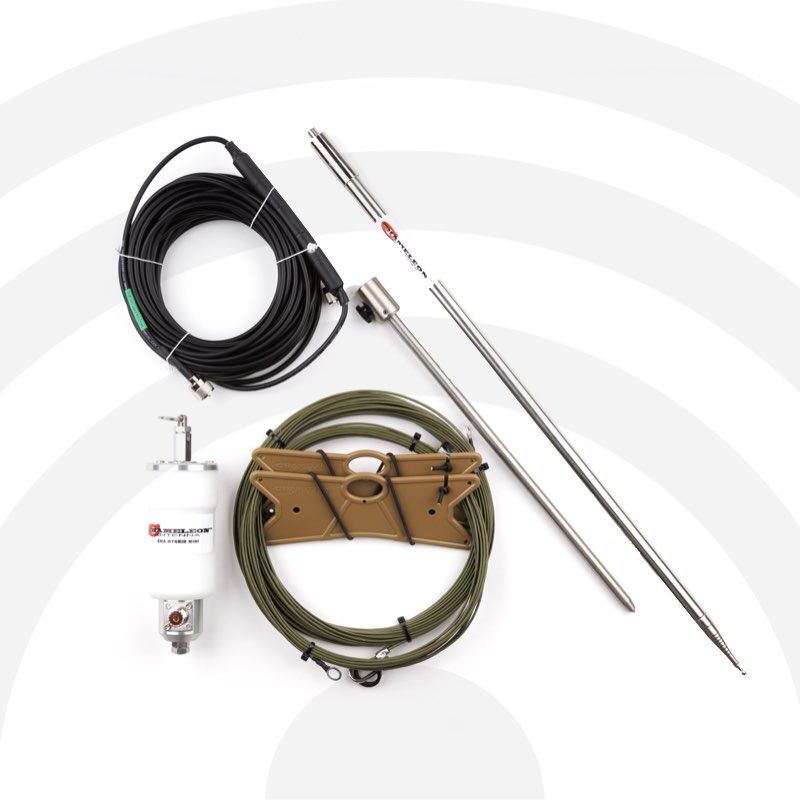

  • 1 X CHA HYBRID-MICRO / HYBRID-MINI
  • 1 X 60′ 1.6 mm (16 gauge) Tinned Copper KEVLAR PTFE (Teflon) (-70Ā°C to 150Ā°C) wire
  • 1 X SS17 (5.2 meter (17′) long collapsible stainless steel whip)
  • 1 X CHA SPIKE
  • 1 X CHA 15 meter (50ā€™) Coax with RFI Choke
  • 1X Wire Winder

USER GUIDE



Weight 2.56 kg
Dimensions 82 × 10.7 × 10.7 cm
Model

HYBRID-MICRO, HYBRID-MINI

Based on 1 review

5.0 overall
1
0
0
0
0

Add a review

This site uses Akismet to reduce spam. Learn how your comment data is processed.

  1. Christian Reslow (verified owner)

    Very rugged, versatile and easy to set up but quite expensive. As a beginner I haven’t got anything to compare it with but after using the Chameleon MPAS Lite for a month I still think it’s great.

    Christian Reslow
