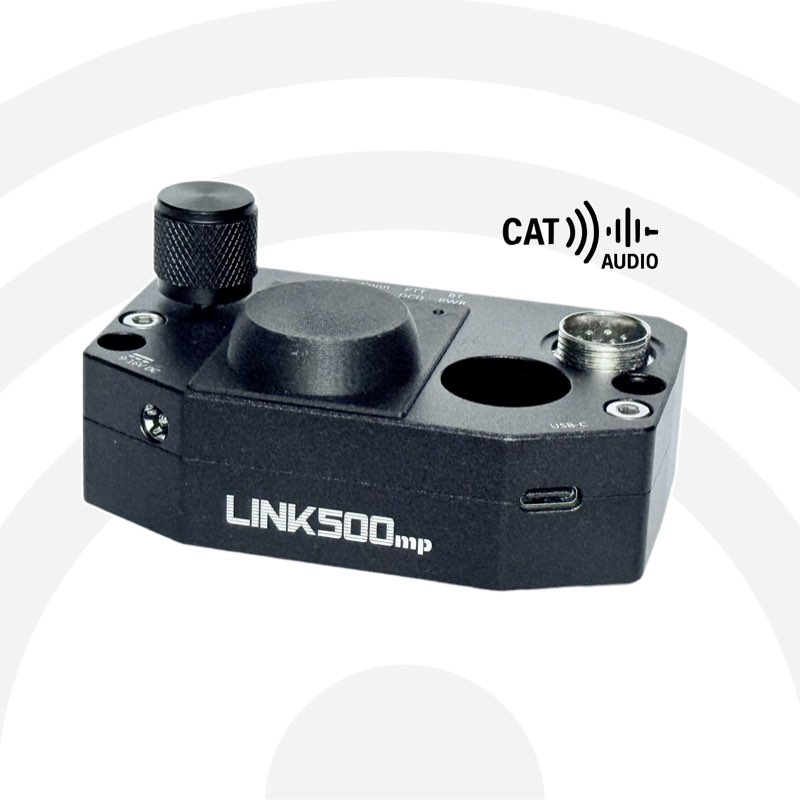

LiNK500MP TNC (MK2) for TX500MP

LiNK500MP TNC (MK2) is an advanced communications interface designed for the TX500MP, combining wireless audio, wireless CAT control, USB audio, APRS tracking, Bluetooth connectivity and built-in GPS in one compact, rugged unit. It is built for amateur radio operators who need a flexible solution for portable operation, digital modes, emergency communication and field deployment.

Overview

The LiNK500MP TNC (MK2) expands the capability of the TX500MP by integrating multiple operating functions into a single purpose-built device. It supports modern digital-mode workflows with a simplified station layout, while reducing cable clutter through wireless audio transmission and wireless CAT control. Its CNC-milled aluminum housing is designed for demanding outdoor and portable use, making it a strong fit for operators who value durability, transportability and dependable operation in real-world conditions.

For users running FT8, JS8Call, VARA, VarAC, APRS or packet applications, the LiNK500MP TNC (MK2) provides a practical bridge between transceiver and computer or mobile device. With USB audio, Bluetooth support and integrated control features, it helps create a cleaner, faster-to-deploy portable setup.

Key Features

• Designed specifically for the TX500MP radio
• Wireless audio transmission for cable-free digital-mode operation
• Wireless CAT control for remote transceiver control without physical cabling
• USB audio interface for digital-mode software integration
• Internal USB hub architecture
• Supports AX.25 packet protocol for AFSK and RPR operation
• Integrated audio, CAT and data interfaces
• Built-in GPS receiver for position data without requiring an external GPS antenna
• Built-in Bluetooth module compatible with iOS, Android, Windows, macOS and Linux
• Built-in APRS tracker for automatic position and status reporting
• Dedicated VFO knob for direct manual frequency tuning
• CNC-milled aluminum enclosure for rugged portable use

Typical Applications

• Man-pack portable and field radio operation
• Emergency communications and rapid deployment setups
• Digital-mode operation including FT8, JS8Call, VARA and VarAC
• APRS tracking and position reporting
• Packet radio and TNC-based data communication

Specifications

Why choose the LiNK500MP TNC (MK2)

• Combines multiple radio interfacing functions into one purpose-built unit for the TX500MP
• Reduces cable clutter with wireless audio and wireless CAT control
• Supports both portable field use and modern digital-mode operation
• Rugged aluminum construction helps it stand up to demanding operating environments

What’s included – In the Box

• LiNK500MP TNC (MK2) device

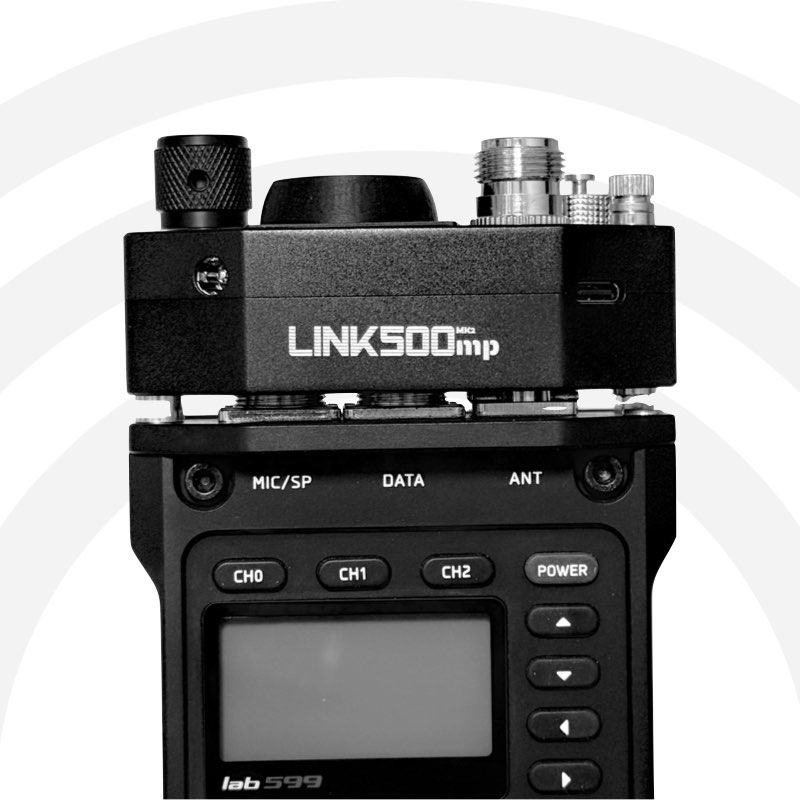

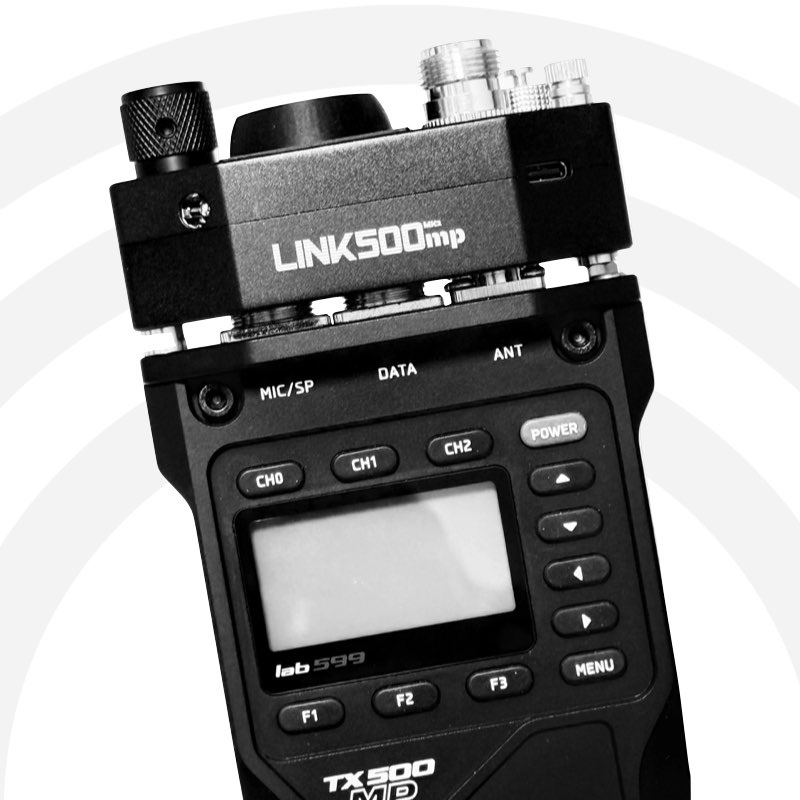

• Mounting kit for the TX500MP radio
• Manual

Performance notes / setup guidance

For best results, pair the LiNK500MP TNC (MK2) with a TX500MP in a well-planned portable or fixed setup where digital-mode software, APRS or packet functions are part of your operating plan. The built-in wireless audio and CAT features make it especially attractive when you want to minimize cables in the field. Operators using WSJT-X, JTDX, JS8Call, VARA or VarAC should verify software audio and CAT settings during initial setup to ensure smooth integration. Built-in Bluetooth and GPS can help streamline deployment, particularly for APRS and location-aware operation.

Upgrade your TX500MP with a compact all-in-one interface that brings together digital modes, APRS, wireless control and portable-ready durability in a single unit. Order the LiNK500MP TNC (MK2) today and build a cleaner, more capable field radio setup.
