Chameleon PRV 2.0, Portable Resonant Vertical HF Antenna

The Chameleon PRV 2.0, or Portable Resonant Vertical 2.0, is part of the Chameleon MPAS Ready family. It uses the MCC 2.0 multi-configuration coil and stainless-steel SS58 telescopic whip to create a compact, field-adjustable vertical antenna for 40–10 m HF operation, with an additional 6 m vertical off-centre-fed dipole configuration. Unlike broadband compromise antennas, the PRV 2.0 is designed to be tuned to resonance, helping reduce system losses and removing the need for an external antenna tuner when properly adjusted.

The system can be deployed as a centre-loaded vertical for improved efficiency, especially on the lower HF bands, or as a compact base-loaded vertical when space, visibility or speed matters most. It can also be expanded with other MPAS Ready components for more specialised field configurations.

Key Features

• True resonant portable vertical antenna system for efficient HF field operation
• Choice of BNC or SO-239 UHF connection
• Covers 40–10 m HF, configuration dependent
• 6 m coverage from 50–54 MHz in vertical OCFD configuration
• MCC 2.0 continuously adjustable loading coil for fast field tuning
• Centre-loaded vertical configuration for increased efficiency
• Base-loaded configuration for compact, discreet installations
• MPAS Ready design for compatibility with Chameleon modular accessories
• Stainless-steel telescopic whip and precision-machined components
• Integrated RF choke in the supplied coaxial cable
• Compact counterpoise system with winders and tent stakes
• Typical setup time under 10 minutes, including tuning

Typical Applications

• POTA and SOTA activations
• Portable HF field stations
• Emergency communications and preparedness kits
• RV, camper and travel operation
• Balcony, patio and apartment installations
• Restricted antenna environments
• Field days, expeditions and temporary stations
• Compact 6 m portable operation

Specifications

Why Choose the Chameleon PRV 2.0?

• Resonant efficiency: Tuned operation helps avoid the losses common in broadband portable compromise antennas.
• Flexible deployment: Use centre-loaded, base-loaded or 6 m OCFD configurations depending on the location and band.
• Portable but serious: Rugged components, counterpoise wires, band keys and a compact coil system make it practical for demanding field use.
• Expandable system: MPAS Ready compatibility lets you build on the antenna with Chameleon accessories as your station requirements grow.

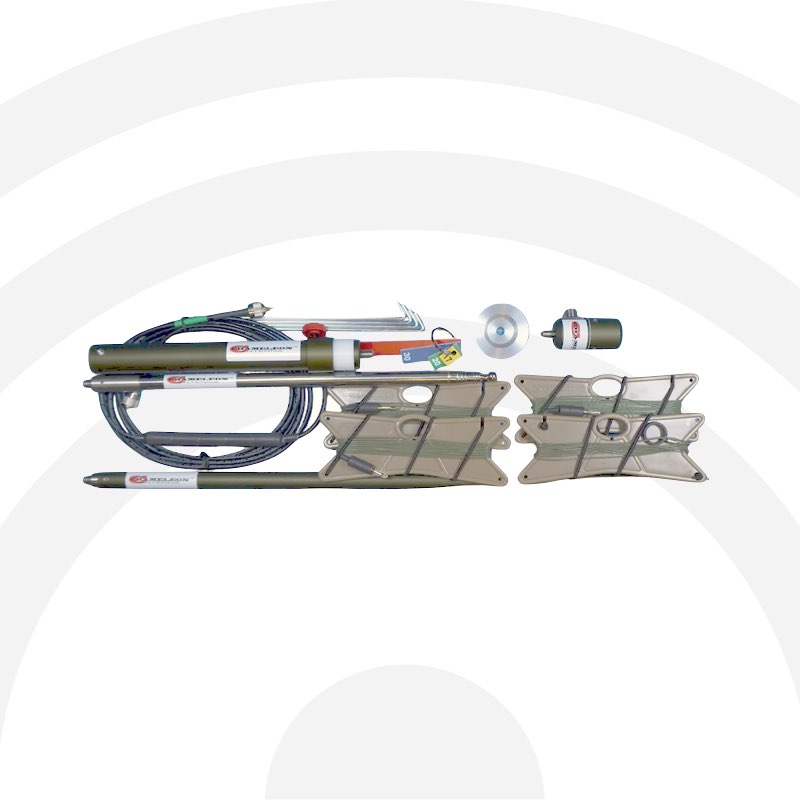

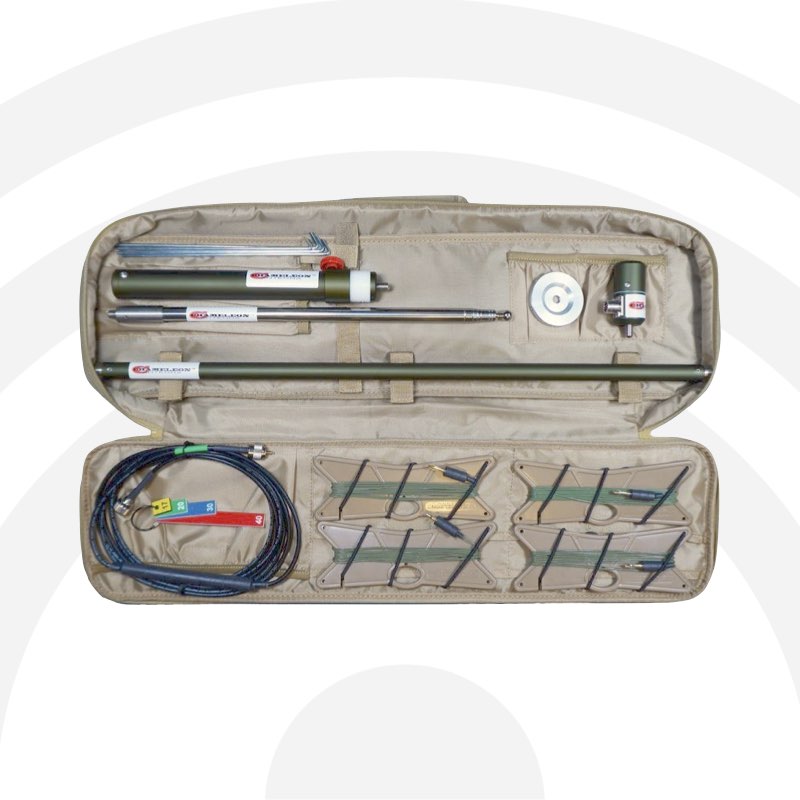

What’s Included – In the Box

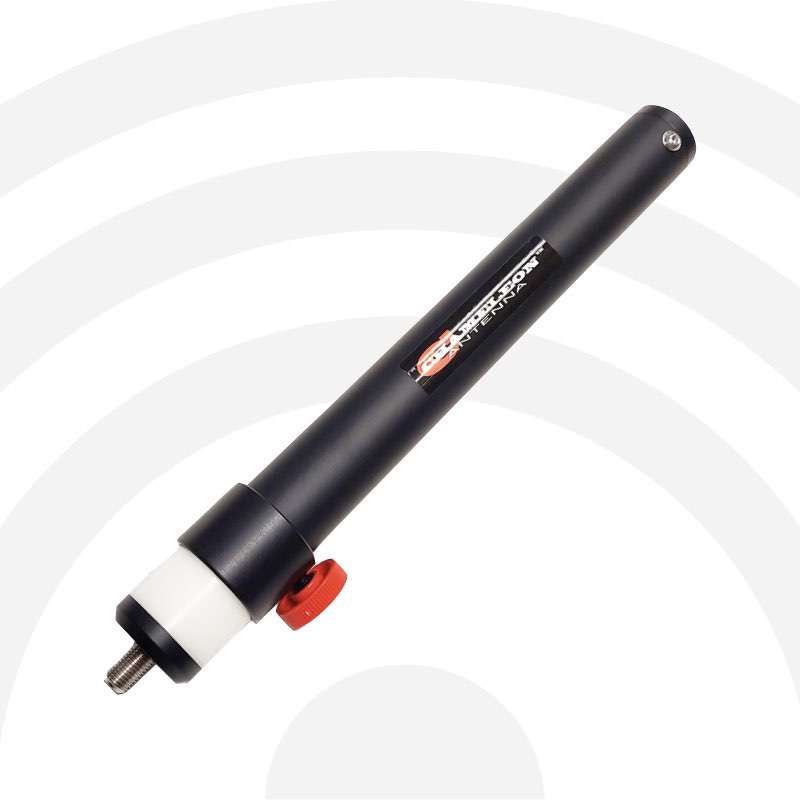

• 1 × Chameleon MCC 2.0 coil
• 1 × Chameleon SS58 stainless-steel telescopic whip
• 1 × Chameleon SINGLE EXT, approx. 68.6 cm (27 in)

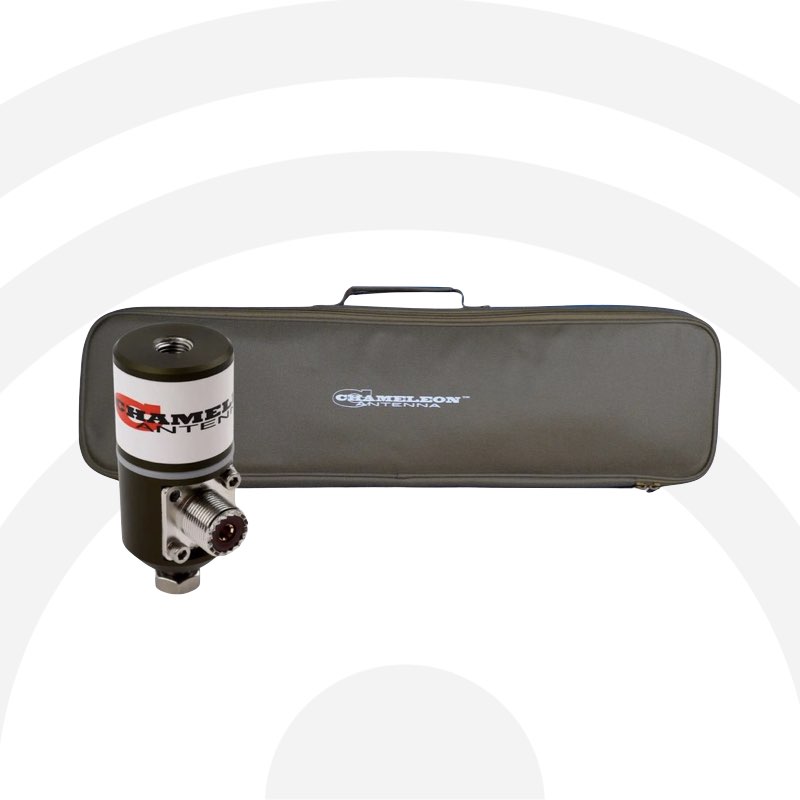

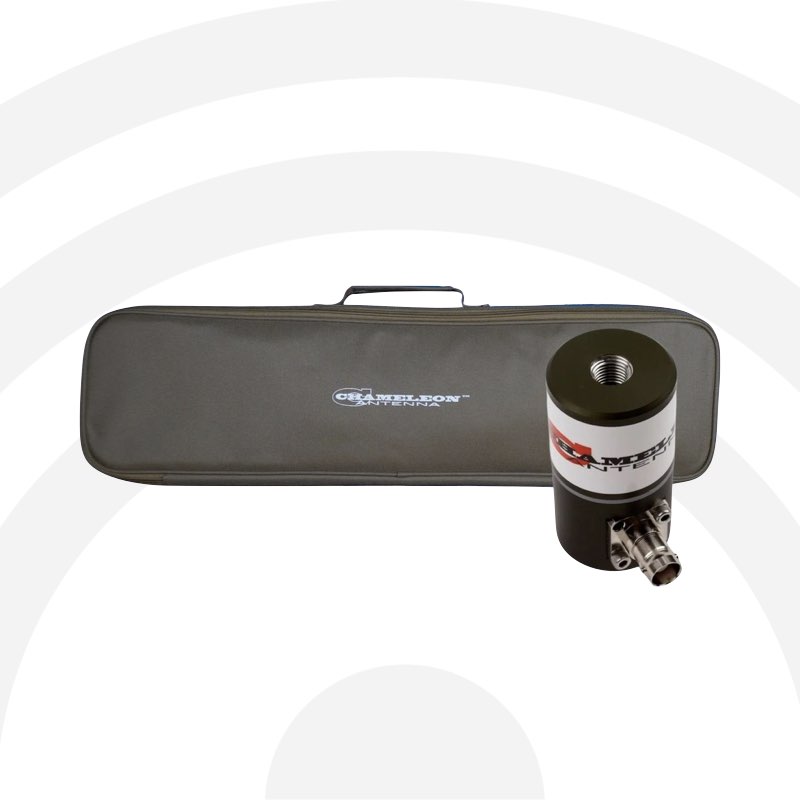

• 1 × Chameleon BLANK adapter, BNC or SO-239 depending on selected version
• 1 × approx. 3.66 m (12 ft) coaxial cable with RFI choke, BNC or PL-259 depending on selected version
• 4 × approx. 3.81 m (12.5 ft) green counterpoise wires
• 4 × Chameleon winders
• 4 × tent stakes
• 1 × Chameleon PUCK hub
• 1 × Chameleon Band Keys set
• 1 × Chameleon MCC bag
• 1 × Chameleon spike mount

Performance Notes and Setup Guidance

For best efficiency on lower HF bands, use the centre-loaded vertical configuration with the supplied extension section to raise the loading coil above the feed point. This improves current distribution compared with a compact base-loaded setup. The base-loaded configuration is useful when you need a smaller footprint, a more discreet installation or a very fast temporary station.

Deploy the supplied counterpoise wires as evenly as possible around the antenna and keep them clear of trip hazards. Tune the MCC 2.0 coil for the desired band and confirm resonance with an antenna analyser or transceiver SWR display before transmitting at higher power. The included Band Keys make repeatable field settings faster once you have found your preferred tuning points.

The Chameleon PRV 2.0 is a strong choice for operators who want a compact, resonant, field-proven vertical antenna that can travel easily and adapt to different operating locations. Select your preferred BNC or SO-239 version and add the PRV 2.0 to your portable HF station today.
