LAB599 BP-550 Smart Battery Pack for TX-500
In stock
Reliable portable power for LAB599 TX-500 operators. The LAB599 BP-550 Smart Battery Pack is a rugged external battery solution for field radio, portable HF, POTA, SOTA, and emergency use. With support for three or six 18650 Li-Ion cells, USB-C charging, and wide DC input compatibility, it delivers flexible, dependable power for serious off-grid operating.
588.75 $
In stock
Key Features
- Designed for LAB599 TX-500 series transceivers

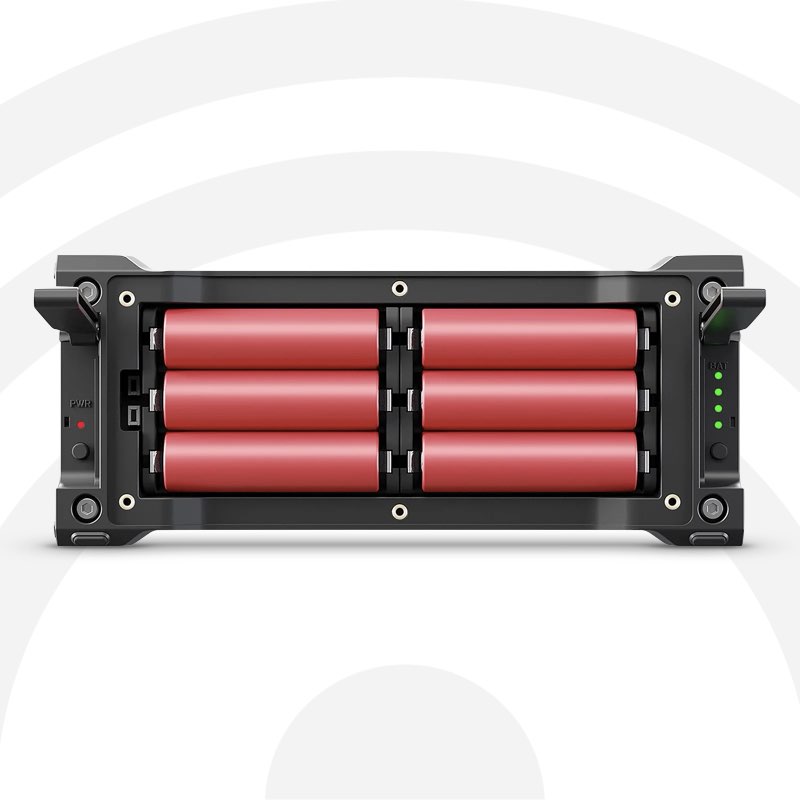

- Uses 3 or 6 replaceable 18650 Li-Ion cells (user supplied)
- Supports standard flat-top, unprotected 18650 batteries only
- USB-C charging with recommended 30 W or higher power supply
- Compatible with PD 2.0/3.0 and BC 1.2 charging standards
- Wide external DC input range: 15-50 V
- Four-segment LED battery charge indicator
- Additional battery information can be shown on the transceiver display

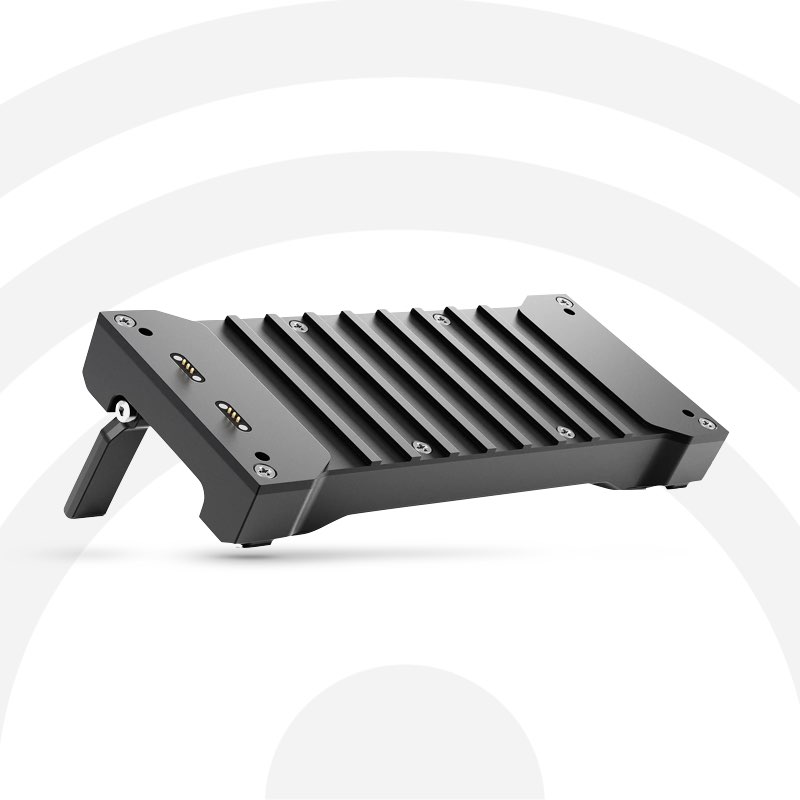

- Impact-resistant plastic housing with aluminum alloy heat sink
- Rubber-sealed buttons, LEDs, and power connectors for splash and dust resistance
- Folding legs for improved operating angle and safer transport
Typical Applications
- Portable HF operation in the field
- POTA, SOTA, and outdoor activation setups
- Emergency communication kits
- Solar-powered off-grid radio stations
- Travel and expedition transceiver power management
Specifications
| Product | LAB599 BP-550 Smart Battery Pack |
|---|---|
| Compatibility | LAB599 TX-500 series transceivers |
| Battery Type | Li-Ion 18650, standard flat-top, unprotected only |
| Battery Quantity | 6 cells |
| Cell Size | 18 mm × 65 mm [0.71 × 2.56 in] |
| Nominal Cell Voltage | 3.7 V |
| External Power Input | DC 15-50 V, recommended current 3 A |
| Charging Port | USB-C |
| Recommended Charging Supply | 30 W or higher |
| Supported Charging Standards | PD 2.0/3.0, BC 1.2 |
| Charge Indicator | Four-segment LED indicator |
| Materials | Impact-resistant plastic case, aluminum alloy heat sink |
| Dimensions (W × D × H) | 90 × 207 × 30 mm [3.54 × 8.15 × 1.18 in] |
| Weight (without batteries) | 0.35 kg [0.77 lb] |
Why Choose the LAB599 BP-550?
- Purpose-built fit and integration for TX-500 series radios
- Flexible field charging from USB-C, DC supplies, vehicles, or solar panels
- Rugged design suited for portable and outdoor operating conditions
- Replaceable 18650 cells make long-term power planning easier and more practical
What’s Included – In the Box
- LAB599 BP-550
- Mounting hardware
- Allen keys
- Documentation
- Warranty card
Performance Notes / Setup Guidance
The BP-550 is designed to operate with standard flat-top, unprotected 18650 cells only. Do not use protected or button-top 18650 batteries, as longer cells may not fit correctly and can cause operational issues. For charging, use a USB-C power source rated at 30 W or higher for best results. When powering from external DC sources, ensure the supply is within the specified 15-50 V range and capable of delivering the recommended current. The integrated folding legs improve desk and field ergonomics, while the aluminum heat sink helps maintain suitable operating temperatures when attached to the transceiver.
The LAB599 BP-550 is an excellent upgrade for TX-500 operators who want a cleaner portable setup, smarter battery management, and dependable off-grid operating flexibility. Add it to your station now and build a more capable field-ready power system for your next activation, deployment, or expedition.
