MO2R Setup

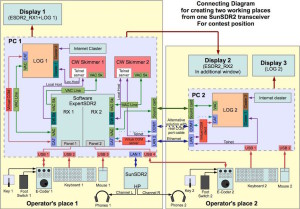

MO2R Setup using SunSDR2 + 2 Ecoder controllers. Click to enlarge.

Here is an idea on how to create a MO2R, Multi Operator Two Radio, for contest use.

The first station functions as the run station while the second is the multiplier station.  Both operators will share the same radio but log on two different networked computers.

Obviously this setup requires band pass filters and separated antennas for an inband multiplier station.
